MECHANICAL SERIES

POWERFUL V6 & IN-LINE 4

DF150

DF150

Advanced technology for performance.

DF150TX
MSRP*RM45,700
  • Manufacturer’s Suggested Retail Price for single engine with required accessories. (Excludes steering system, battery, control cable and rigging hose).
Picture of boat using DF150 Picture of boat using DF150

Setting a New Benchmark for Four-Stroke Performance

Our engineers took advantage of advances made in four-stroke engine technology and performance in designing the most powerful four-cylinder outboards Suzuki has ever built.

The Large Displacement and Lightweight Four-Strokes

Suzuki's talent for delivering high-end power from compact designs is clearly evident in this pair of in-line four-cylinder outboards. Turning the key unleashes big block performance from their 2,867cm3 powerheads but while their large displacement contributes greatly to producing exceptional acceleration, it doesn't mean that they are comparatively larger and heavier in size. On the contrary, Suzuki's engineers have designed these big block motors to be compact and lightweight.

Fuel Efficient Operation Through Suzuki Technology

The DF150 delivers amazing performance but not at the expense of economy. Utilizing a 32-bit onboard computer to optimize electronic fuel injection performance, the DF150 offers superior fuel economy, conform to EURO 1 emission standards, and have received a three-star rating from the California Air Resources Board (CARB).

Transferring Power Into Speed

The DF150 is designed to swing a larger diameter prop and feature a more aggressive gear ratio. The combination of larger prop and lower gear ratio delivers superior holeshot, which is especially valued on high-performance boats.

Conveniences That Make Operating a Pleasure

Suzuki outboards are designed with features that make your boating experience that much more pleasurable. The DF150 incorporates high output alternators to keep an assortment of electronics up and running, water-cooled voltage regulators with isolators that allow use of two batteries, and a conveniently located fuse box. Also featured are tilt limit switch and two engine flush ports.

POWERFUL
  • GEAR RATIO
  • OFFSET DRIVESHAFT
  • MULTI-STAGE INDUCTION
RELIABLE
  • SELF-ADJUSTING TIMING CHAIN
  • WATER DETECTING SYSTEM
INNOVATIVE

Advanced Technology for the Performance

Multi-Stage Induction (MSI)

The DF150 incorporates a multi-stage induction system to enhance engine performance by changing the length of intake manifold pipes according to engine speed. The system utilizes two intake manifold pipes per cylinder, one for operating at low engine speed and another for operating at high. At lower rpm, air enters the combustion chamber through the longer manifold pipe, which is designed to deliver an optimum volume of fresh air into the chamber to improve combustion and boost low-end torque.
As the engine speed surpasses a preset threshold, the valve on the direct intake pipe opens up letting air enter instantly into the combustion chamber. Short and lacking resistance this pipe gets a greater volume of air into the chamber, increasing the engine's ability to breathe at high rpm, thus improving high speed power output.
Suzuki engineers have equipped these outboards with many other advanced features that contribute to engine performance.
A spherical bore throttle body produces smoother airflow during acceleration. This results in greater engine control and stable operation at low rpm.

Diagram of Multi-Stage Induction (MSI)
Air Flow in Multi-Stage Induction Module
Diagram of Multi-Stage Induction (MSI)
Torque Curve

Large Displacement, Remarkably Light in Weight

Our talent for delivering high-end power from compact designs is clearly evident in the DF150. Turning the key unleashes big block performance from their 2,867 cm3 powerheads. But while their large displacement contributes greatly to producing exceptional acceleration, it doesn't mean that they are comparatively larger and heavier in size. On the contrary, we have designed these big block motors to be compact and lightweight.

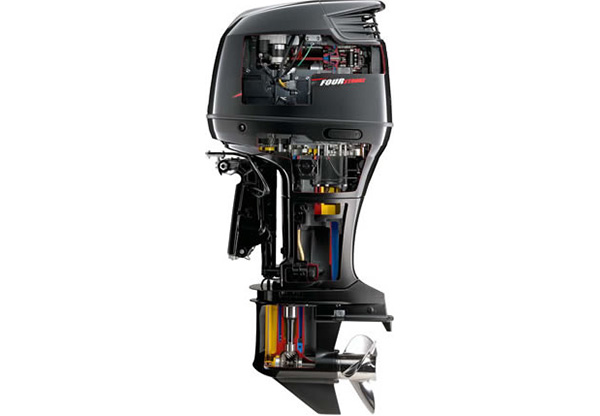

Picture of Large Displacement, Remarkably Light in Weight

Smooth Operation

Counter Balancer System

In-line four-cylinder engines operating at high rpm generates a secondary vibration that is directionally in line with the piston's movement. In order to counter this vibration, Suzuki engineers utilize a secondary balancer system, which produces a horizontal motion against piston's movement. To produce this horizontal motion, the balancer is divided in to left and right sections each rotating in an opposite direction. Rotating at twice the speed of the crankshaft, the balancers effectively counter these secondary vibrations and produce a smoother operating engine.

Offset Drive Shaft

First introduced in the DF115 and the original DF90, Suzuki's offset driveshaft has proven successful in reducing the size of the Suzuki line-up, from the DF70 to the DF300. The DF150 benefits from this same design, which positions the crankshaft in front of the drive shaft simultaneously moving the outboard's center of gravity forward. While adding to the compactness of the outboard and providing an improvement in power performance, this system also places the engine's axis of inertia, the point where vibrations produced by the engine are at a minimum, up over the upper engine mount thus greatly reducing vibration.

Diagram of Offset Drive Shaft

Durability and Reliability

Suzuki's Anti-Corrosion Finish

Suzuki's anti-corrosion finish is specially formulated to increase the durability of the engine and protect those parts of the aluminum exterior that are constantly exposed to saltwater. Applied directly to the outboard's aluminum alloy, this advanced finish provides maximum bonding of the outboard's finish to its aluminum surface. Layered on top is an epoxy primer undercoat, black metallic finish, and clear acrylic fiber finish that together, form an effective treatment against corrosion.

Diagram of Suzuki's Anti-Corrosion Finish
MODELDF150*3
RECOMMENDED TRANSOM HEIGHT mmL:508, X:635
STARTING SYSTEMElectric
WEIGHT kg *1L:232, X:237
ENGINE TYPEDOHC 16-Valve
FUEL DELIVERY SYSTEMMulti-Point Sequential Electronic Fuel Injection
NO. OF CYLINDERS4
PISTON DISPLACEMENT cm32,867
BORE ×STROKE mm97 × 97
MAXIMUM OUTPUT kW110.0
FULL THROTTLE OPERATING RANGE rpm5,000-6,000
STEERINGRemote
OIL PAN CAPACITY Lit.8.0
IGNITION SYSTEMFully-transistorized
ALTERNATOR12V 44A
ENGINE MOUNTINGShear Mount
TRIM METHODPower Trim and Tilt
GEAR RATIO2.50:1
GEAR SHIFTF-N-R
EXHAUSTThrough Prop Hub Exhaust
PROPELLER SELECTION (Pitch) *2
All propellers are the 3-blade type
15"-27.5"
  1. Dry weight: not including propeller and engine oil
  2. Please inquire at your local dealer for details of the propeller
  3. Counter Rotation Model Available

The appearance, colors, and equipment of outboard motors may differ according to market and grade.
Specifications may change without prior notice.
*Manufacture data
